Rivendell Clem Smith Jr. "L" - Hillibike Frame

Orange and Forest Green frames are due to arrive late-February 2024.

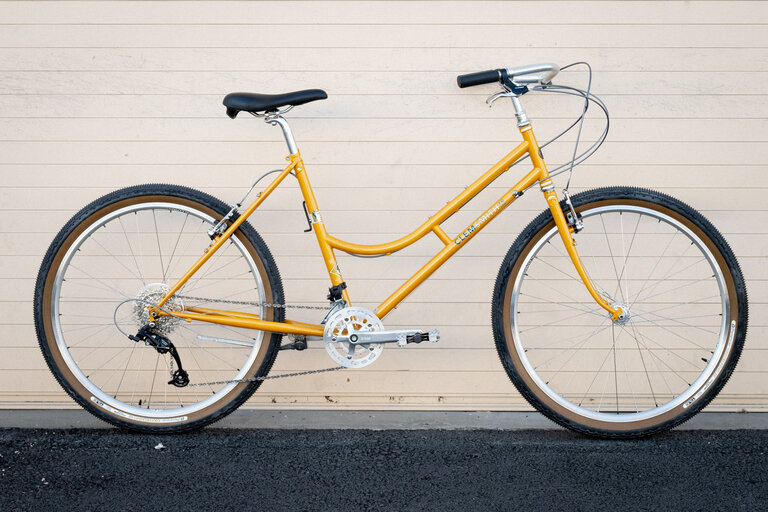

Clem Smith Jr. is Rivendell’s fat-tire, easy to fender & rack, joyously upright and stable, and more affordable than the rest of their lineup bicycle frame. The "L" version is "Low top-tube".

They're more affordable only because most of the joints are tig-welded instead of lugged. Tigs cut the construction time for each frame down by a lot so the price gets lower. It's a perfectly strong way to make a bicycle, although not as pretty to look at as lugs.

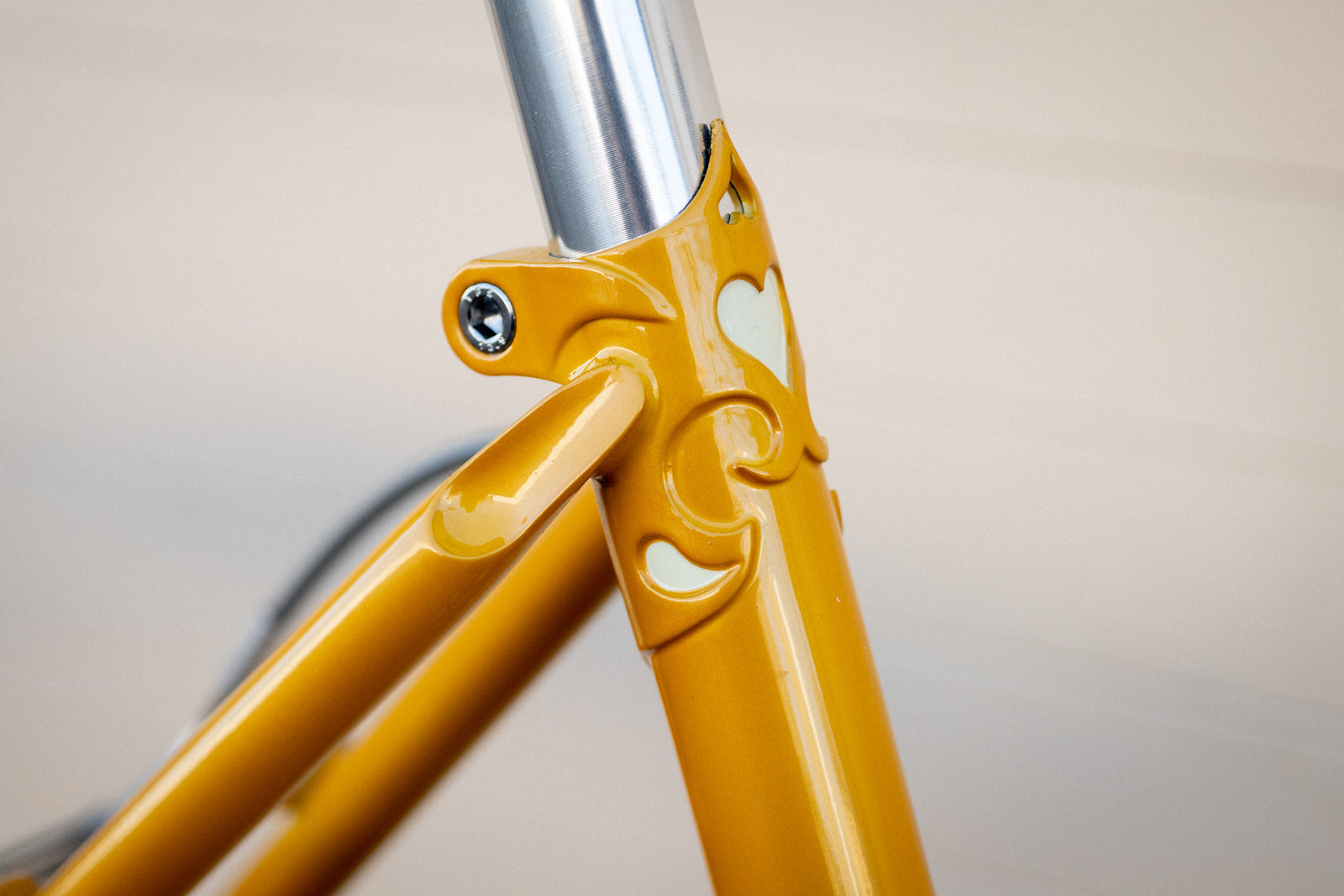

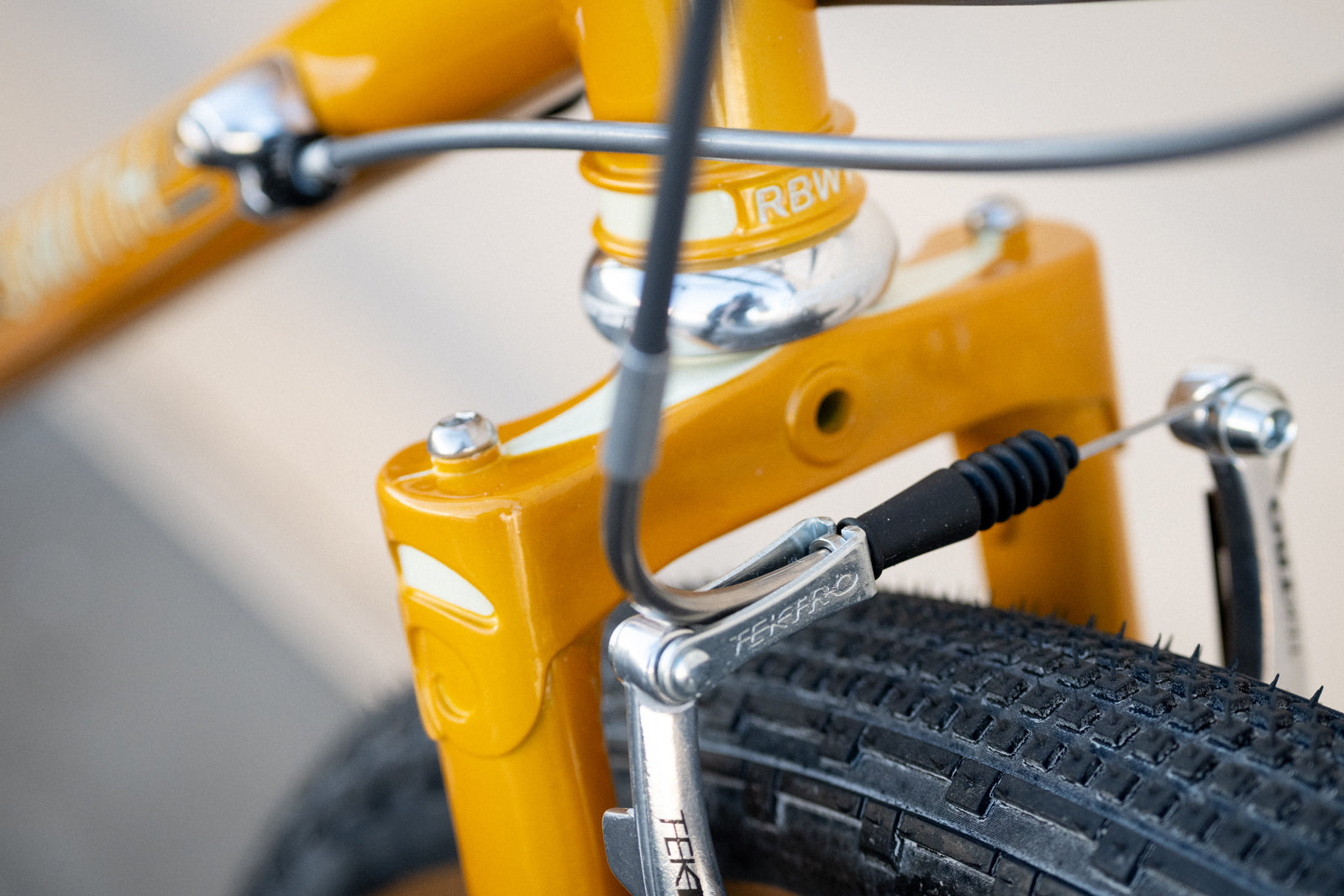

Clems still have a strong wide fork crown, napkin-ring reinforcement lugs at the headtube, and a beautiful well-designed seatlug, so it looks far from a generic bike.

These are made by the same people who make the more expensive frames and with the same materials even. Just no lugs (lugs are expensive).

FRAME SIZES/WHEEL SIZES:

45cm / 650b / 27.5 inch new mountain bikey size wheels.
52cm / 650b / 27.5-inch new mountain bikey size wheels.
59cm / 700c rim size, but with room for "29er" tires
64cm / 700c rim size, but with room for "29er" tires

Seatpost Dimensions — 26.8mm for 45cm and 52cm and 29.8mm for 59cm and 64cm

PBH ranges:

45cm - 68 to 81cm
52cm - 74 to 88cm
59cm - 86 to 96cm
64cm - 93 to 101cm

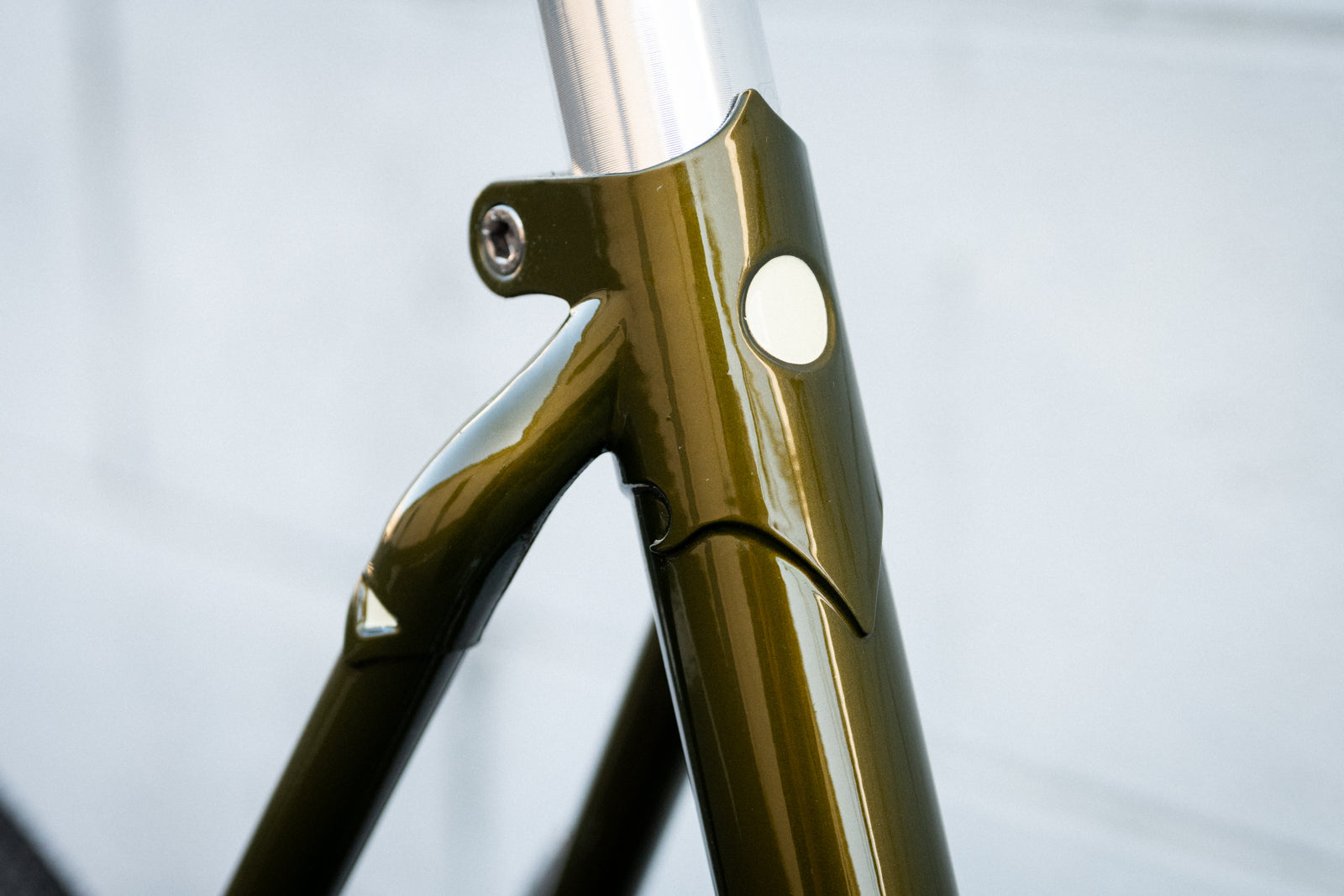

Pick the frame size that your PBH falls most in the middle of the range. The large frames have the curved seatstays and simpler seat-cluster. The small frames have straight stays and the fancy seat-cluster.

Framesets include an FSA Duron 1" threaded headset and a seat post.

Colours are TBD, but Riv colours are always quite excellent, so don't stress too much on that. Lately we've seen some blue-greys and some green-yellows a lot.
