Rivendell Sam Hillborne - Allroad Light-Tourer Frame

C$2,350.00
Out of stock
Available in store: Check availability

Available in store

Close
Country-bike frame for all types of roads and a good amount of touring
Out of stock
These frames are due to arrive Summer 2022. We're not pre-selling them as such, but get in touch by email if you want to line up a build.

FOR ALL ROADS — paved, dirt, or gravel; and the kinds of fire trails a Conestoga wagon could negotiate, but not the kind that would require a jackass. If you're skilled and have good judgement and fattish knobby tires, you can ride the Sam where you shouldn't. Stick with what it's designed for: all the above, and Road touring, shopping, and commuting.

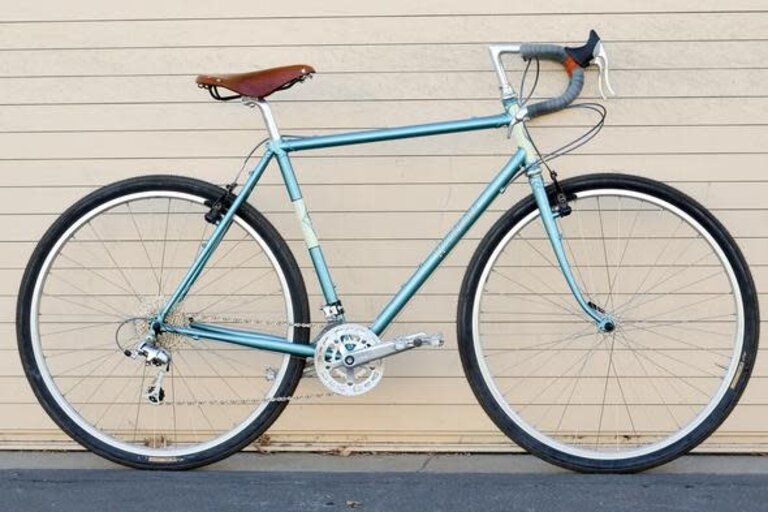

The Sam is a versatile road and light trail bike.

ALL WEATHER: Easily fendered. Can the "gravel bike" you're considering fit fenders? How about racks?

Everything that makes it a great touring bike also makes it a great commuter, camper or all-rounder. The Sam is equally a great bike for a carrying food and camping gear and clothing around.

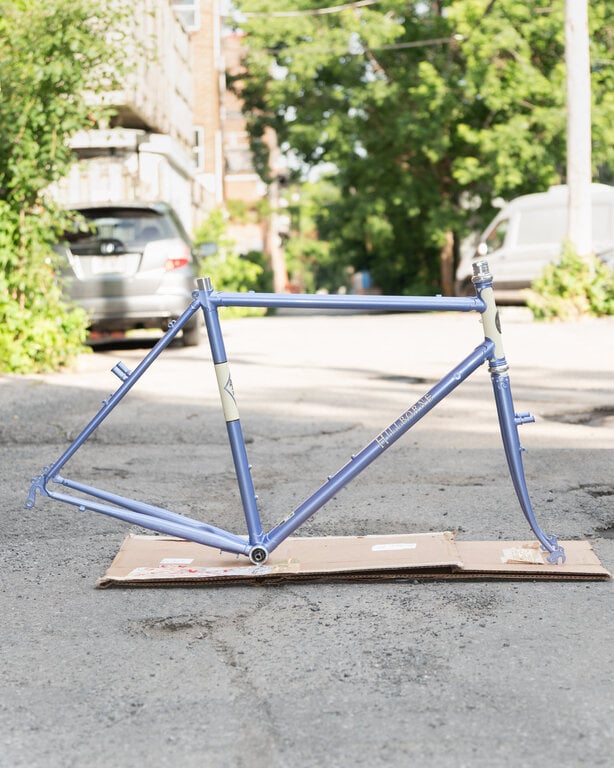

FRAME: SILVER (brand) CrMo tubing in dimensions RBW see fit. Geometry is theirs alone, also. It rides like all Rivendells. Good with drop bars or uprights. Fits tires up to 45 with fenders, 48 without.

BRAKES: V-brakes (standard or mini) or cantilevers. We can advise. If you will use Cantis, be sure to buy front and rear cable hangers (not included).

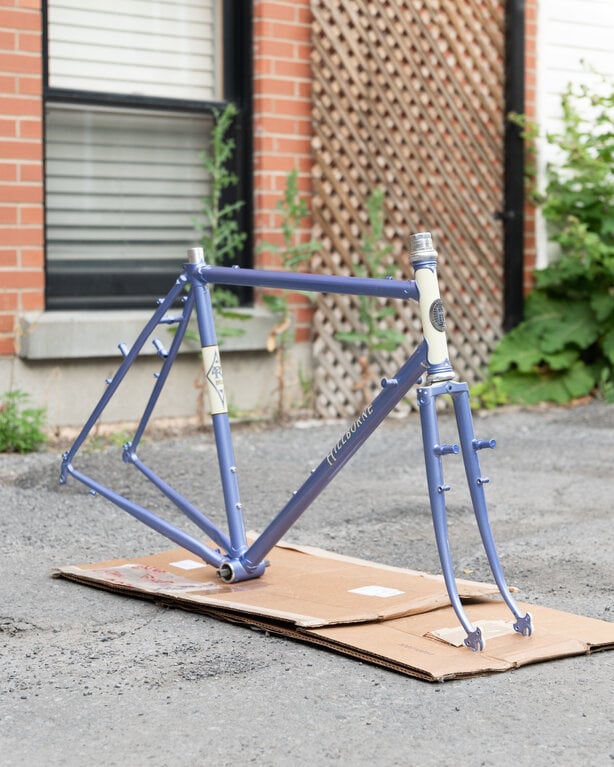

BRAZE-ONS: A-plenty. Easy to mount racks, fenders. (Well, as easy as they ever are. They're usually a little fussy, but that's not the frame's fault.)

LOAD CAPACITY: It depends on your weight, the road surface, the tire volume, air pressure, and your riding style. Basically, a 185lb rider can probably tote 35 to 40lbs on road rides. It's not a full-on touring bikes, but it's not a wimp, either.

HANDLEBAR STYLE: Drops, Albastache, or any upright. Use a short stem with drops or Albastache--maybe 5 to 7cm. With Albatross, up to 10cm, and with Billie or Tosco, 11 or 12cm.

RIDER WEIGHT LIMIT?: It's hard to say, it depends so much on what else you're carrying, the surface you're on, the tire volume and pressure...lots of things that are just hard to pin down. But we'll say...220lb. But if you weigh that, don't also load the bike up with touring gear. And consider an Appaloosa, which fits bigger tires and has a stouter fork.

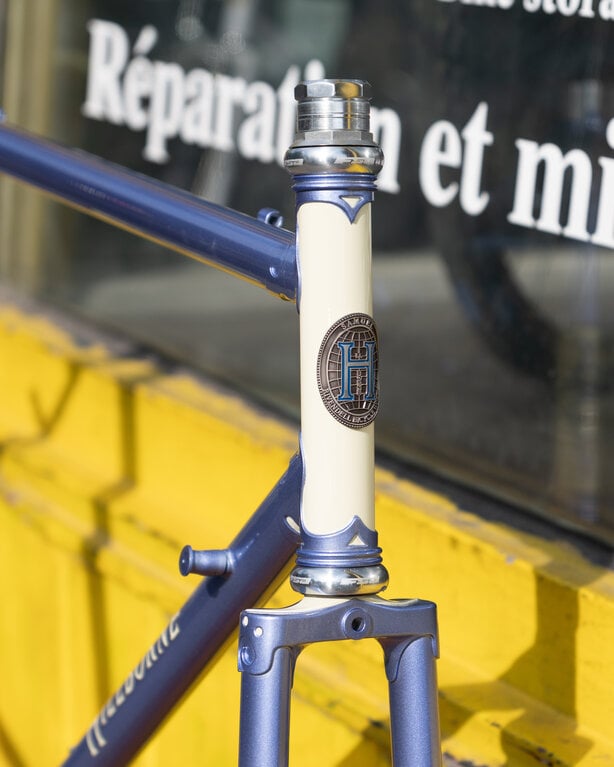

LOOKS GOOD TO US: The Sam Hillborne is a classically styled frame with sweated-over graphics. The frame joints are lugged, the fork has a crown, and they're all RBW designed investment castings, starting from rocks, which are made into metal, and shaped with precision and beauty by a process developed in China ten thousand years ago.

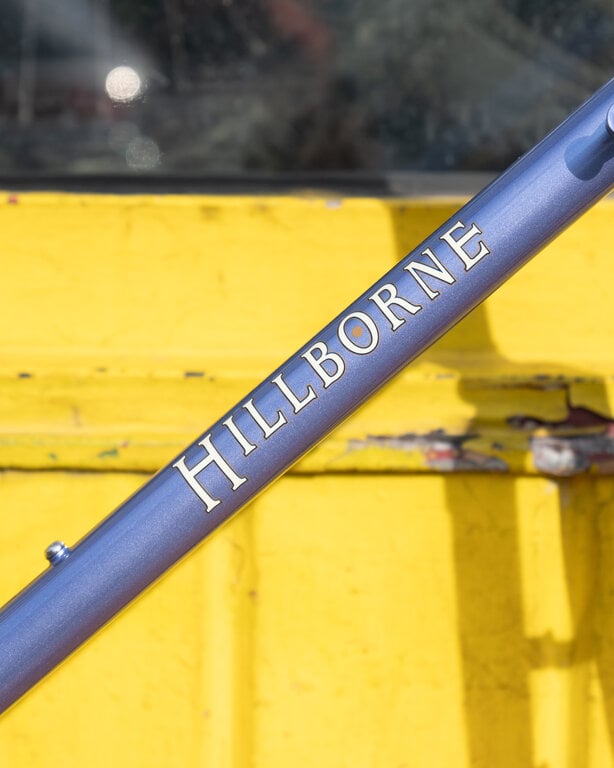

RBW pay attention to even the most superficial details: The stress-relief hole on the back of the seat lug is painted cream. The wings on the fork crown, too. The seat tube and down tube decals are in exactly the right spot, something that always used to happen before the 21st century came around and people with no taste took over. The letters are filled with cream, edged in black, and "halo'd" in gold, for an easy-on-the-eye transition to the paint colour. The fork's curved and tapered blades have wild and crazy, beautiful cream-edged dropouts. The bottom bracket shell is designed to minimize stress, with curves where other shells have points; and with windows to aid the brazer. Age, scrapes, grime, and other signs of use just make it look better.

Frame Size Tire Size Minimum PBH
48cm 650B 76cm
51cm 650B 79cm
54cm 700C 83cm
57cm 700C 86cm
60cm 700C 89cm



Framesets include an FSA Duron 1" threaded headset, a seat post, and 110mm square-taper bottom bracket.
