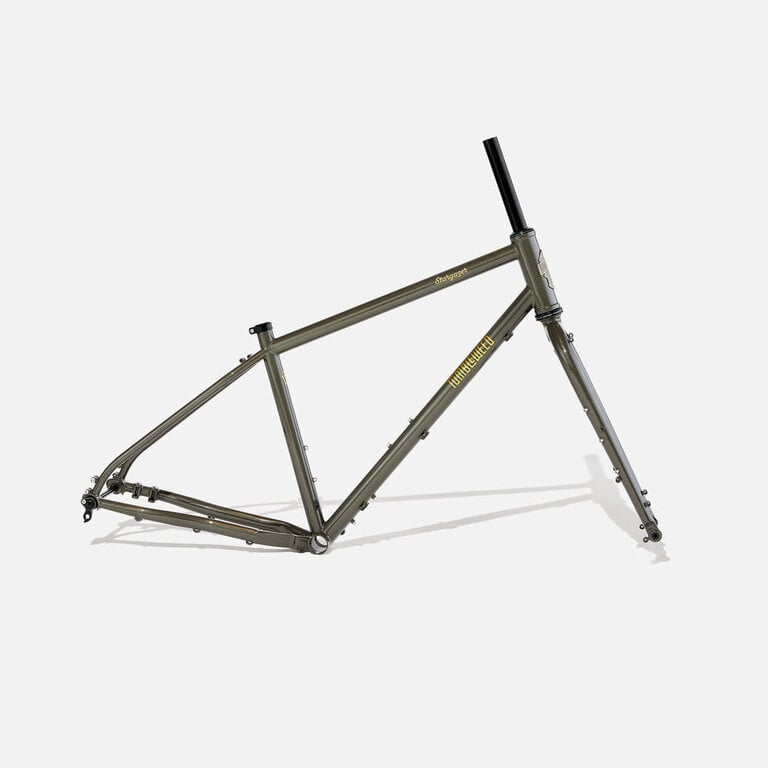

Tumbleweed Stargazer Frame/Fork

In stock
Available in store: Check availability

Available in store


If we don't have the size or colour you're interested in, hit us up!

The Stargazer is a nimble and balanced drop bar mountain touring bike designed for loaded trail riding. It's at home on trails, singletrack and gravel roads whether unladen or with racks and bags on an adventure. The Stargazer a direct descendant of Tumbleweed’s first bike model, the Prospector, and shares much of the same tubing and mountain bike geometry, with a shorter reach to accommodate drop handlebars, and a lighter weight overall package.

The Stargazer is built to be a fun, confidence inspiring bike that covers a wide range of terrain and is optimized for bikepacking and off road touring.

Here are the specs:
  • Frame Material: Heat treated size specific Chromoly tubing, oversized triple and quad butted front triangle with integrated gussets
  • Rack/Fender Compatibility: Rack and fender compatible, three bottle mounts on frame triangle
  • Fork: Unicrown Chromoly steel with 110x15mm thru axle (thru axle included), upper and lower rack mounts, fender mounts, triple bottle cage mounts on fork legs, internal dynamo wire routing
  • Max Tire Clearance: 29x2.6"/27.5x3.0"
  • Headtube: 44mm I.D.
  • Headset: ZS44 upper, EC44 lower
  • Bottom Bracket: 73mm BSA threaded
  • Rear Axle (Included): 148x12mm Boost
  • Seatpost Diameter: 27.2mm
  • Dropper Seatpost Compatibility: Internally routed for dropper post
  • Seat Clamp (included): 32mm
  • Drivetrain Compatibility: 1x drivetrain specific, not designed to accomodate front derailleur
  • Brake Compatibility: 160/180mm flat mount front and rear
  • Fork Axle to Crown: 440mm
  • Fork Steer Tube Length: 350mm
  • Chainring Clearance: 1X Boost, 38 tooth max
