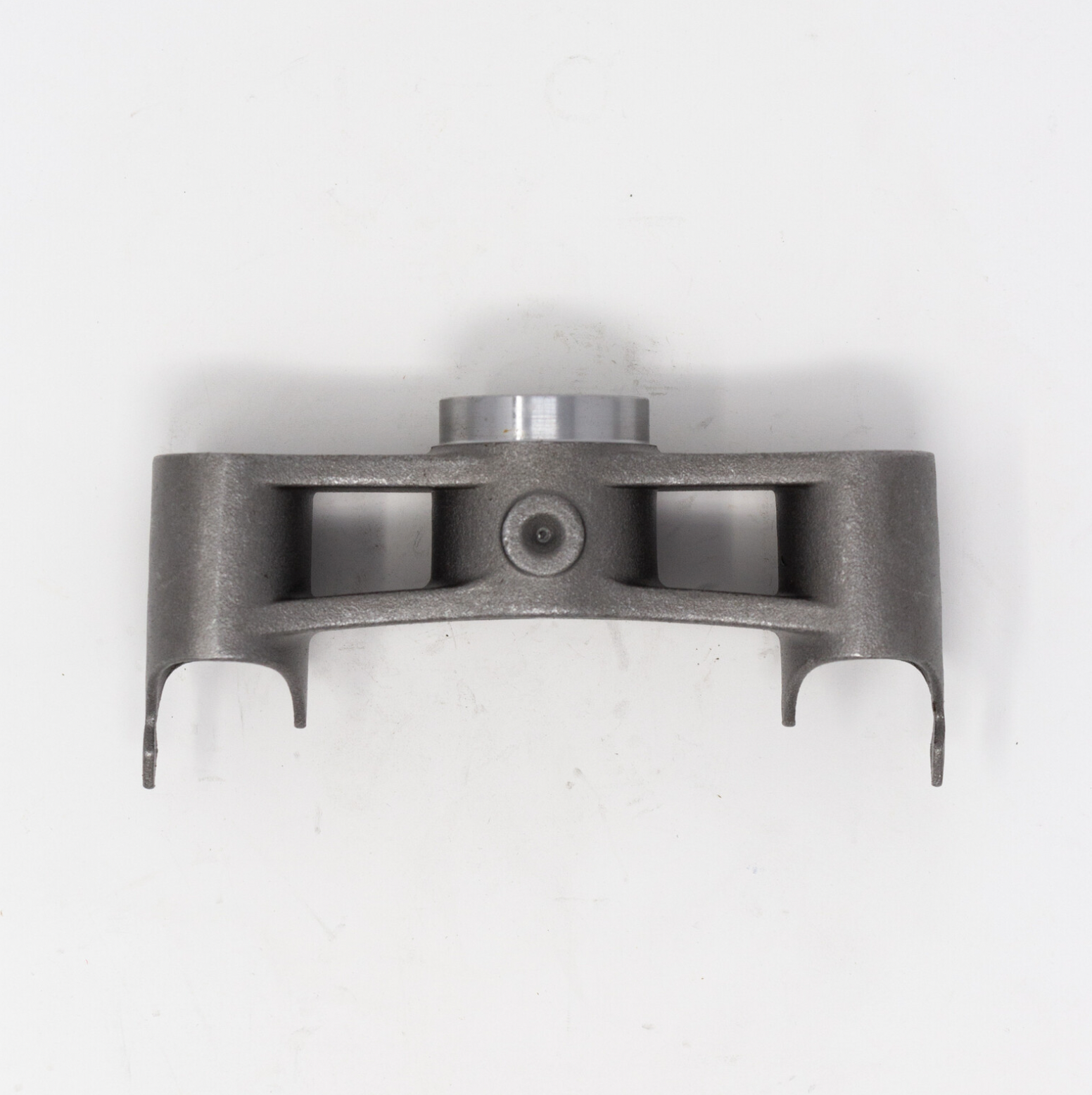

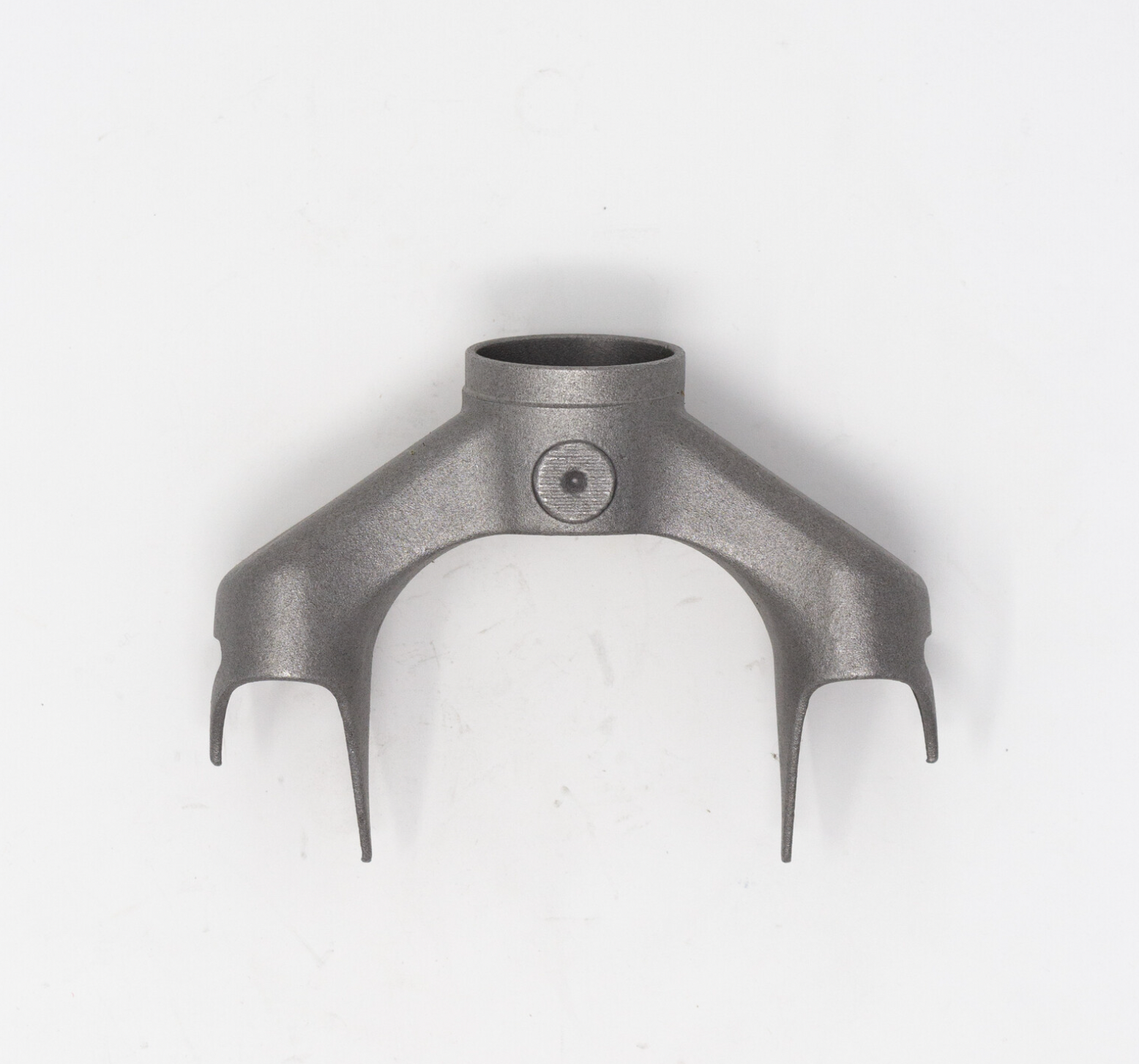

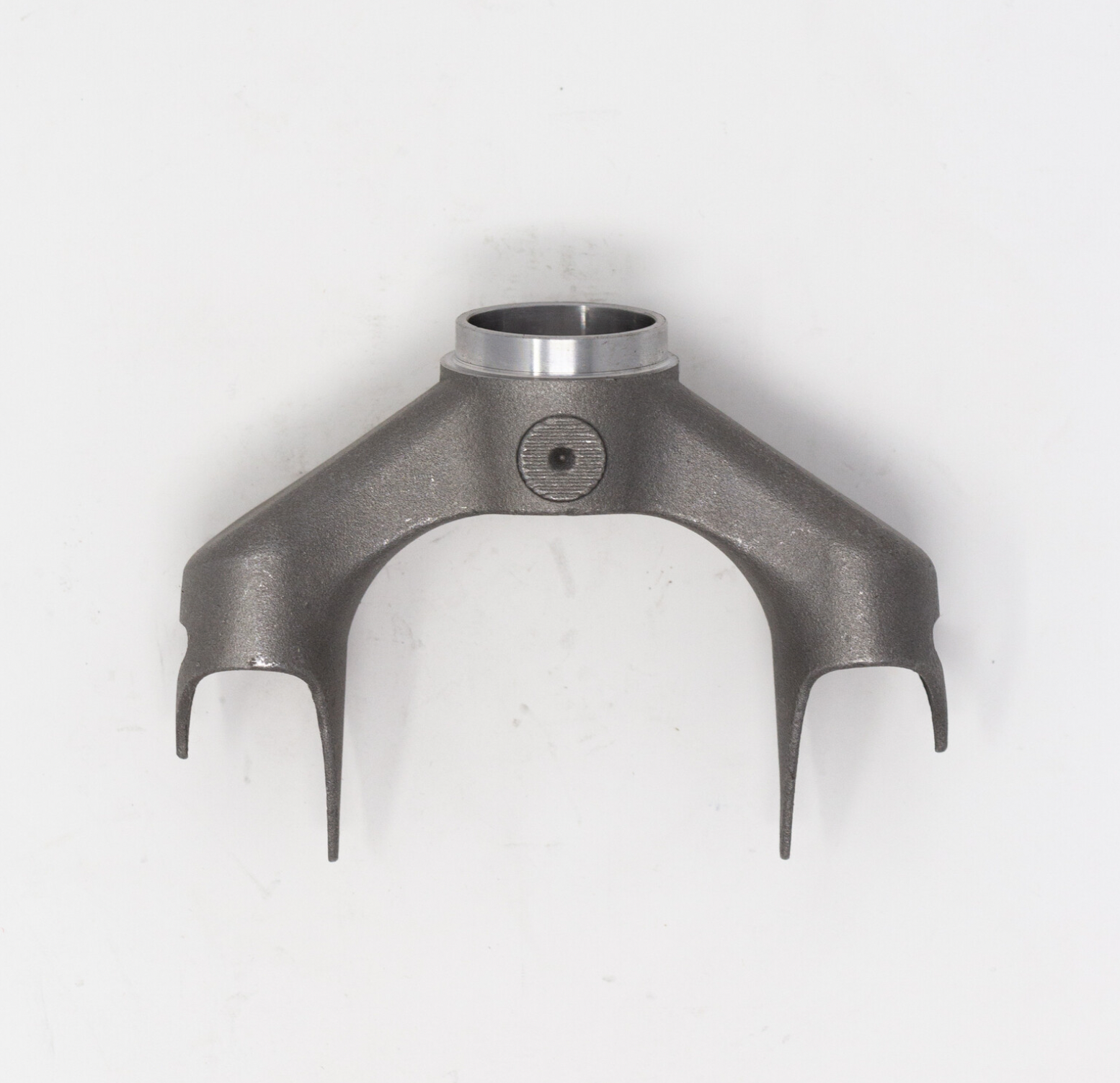

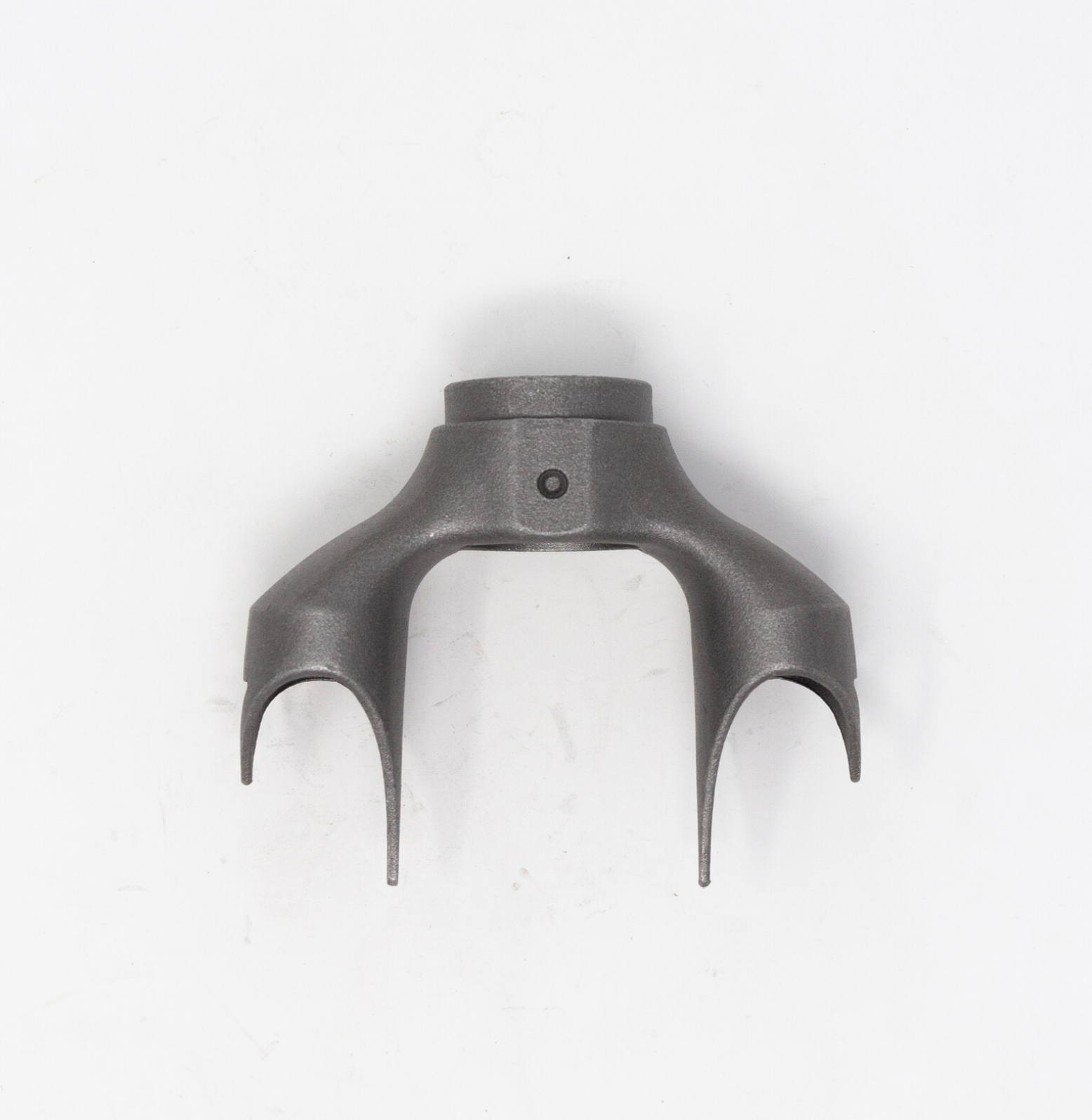

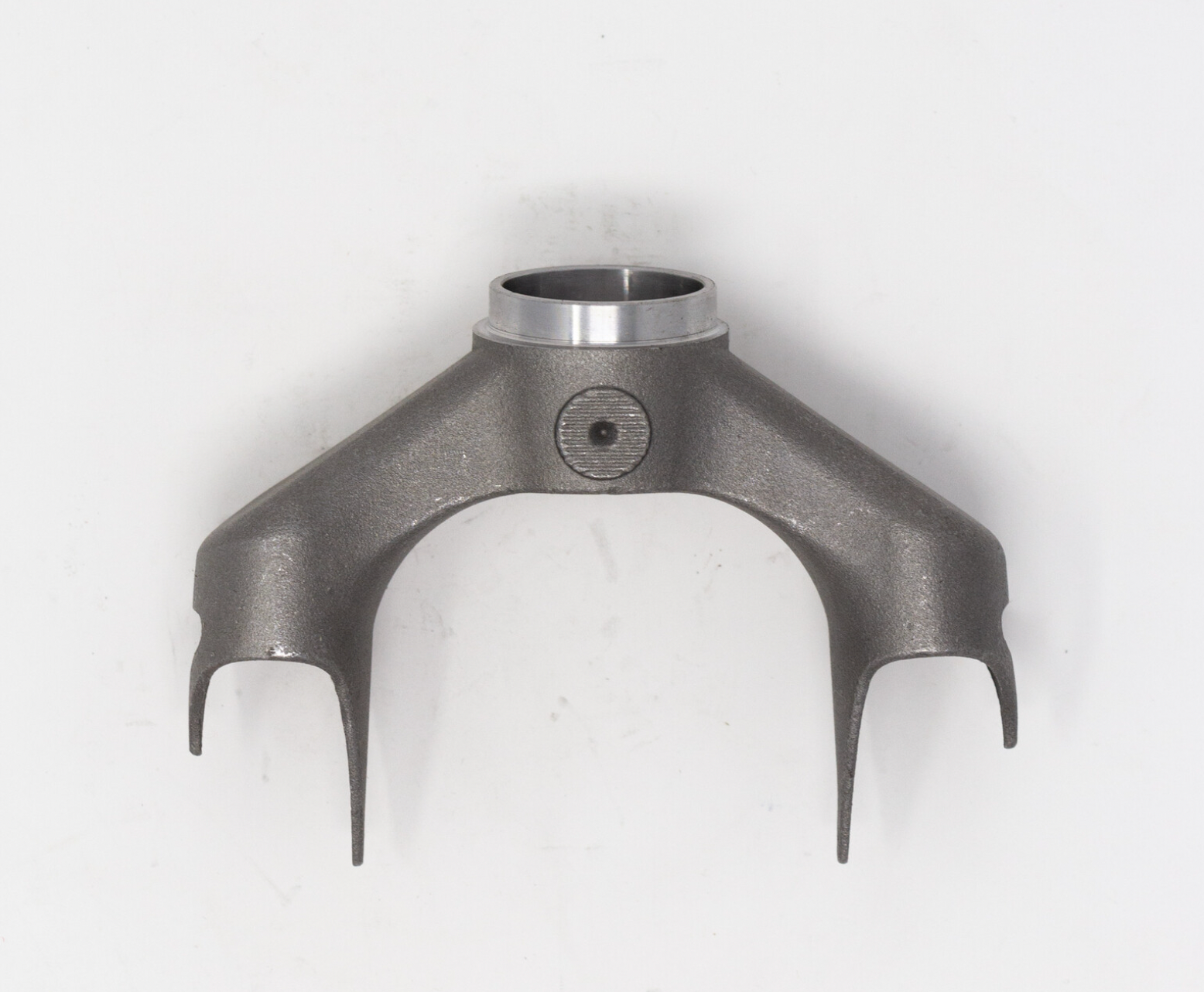

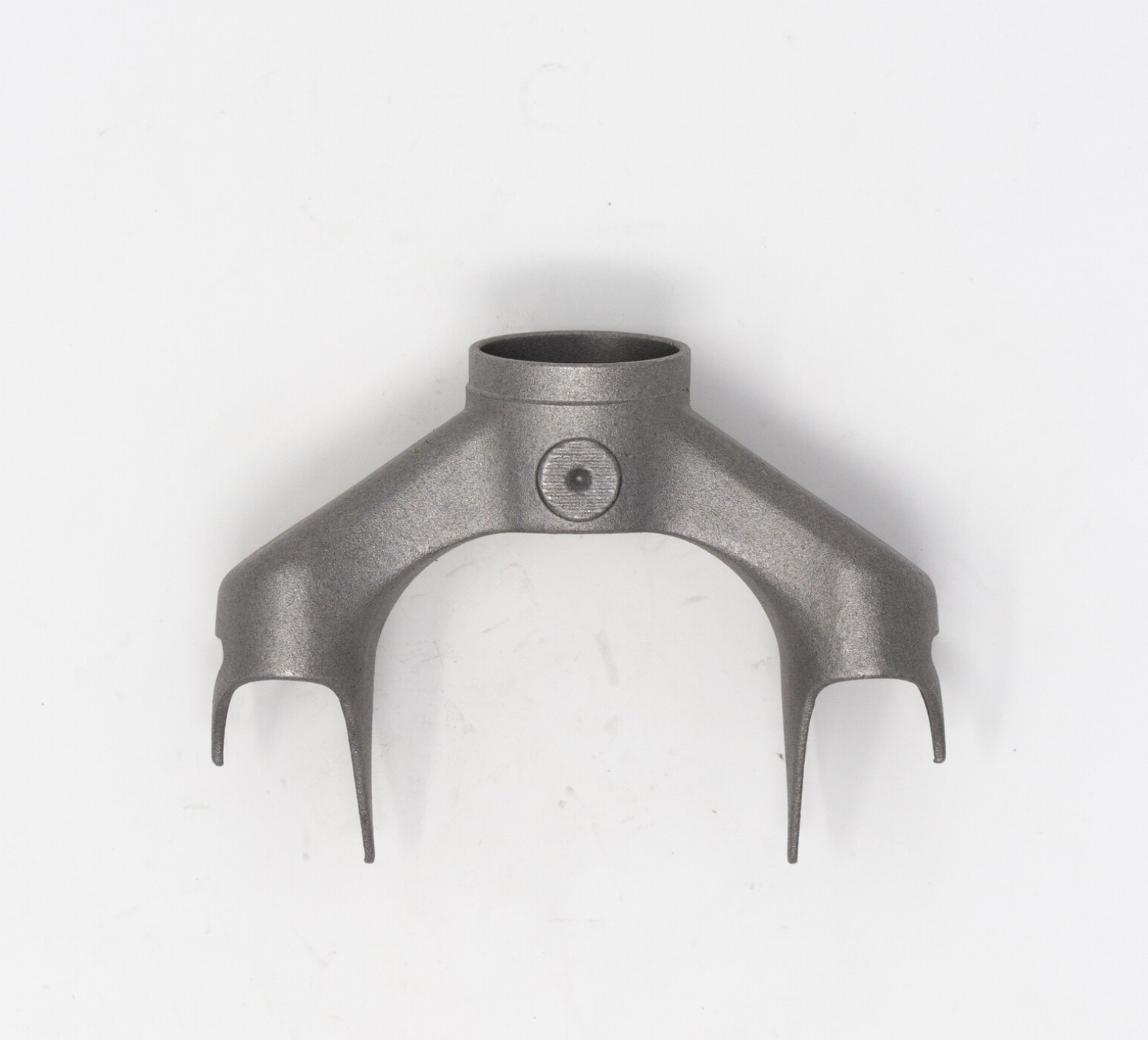

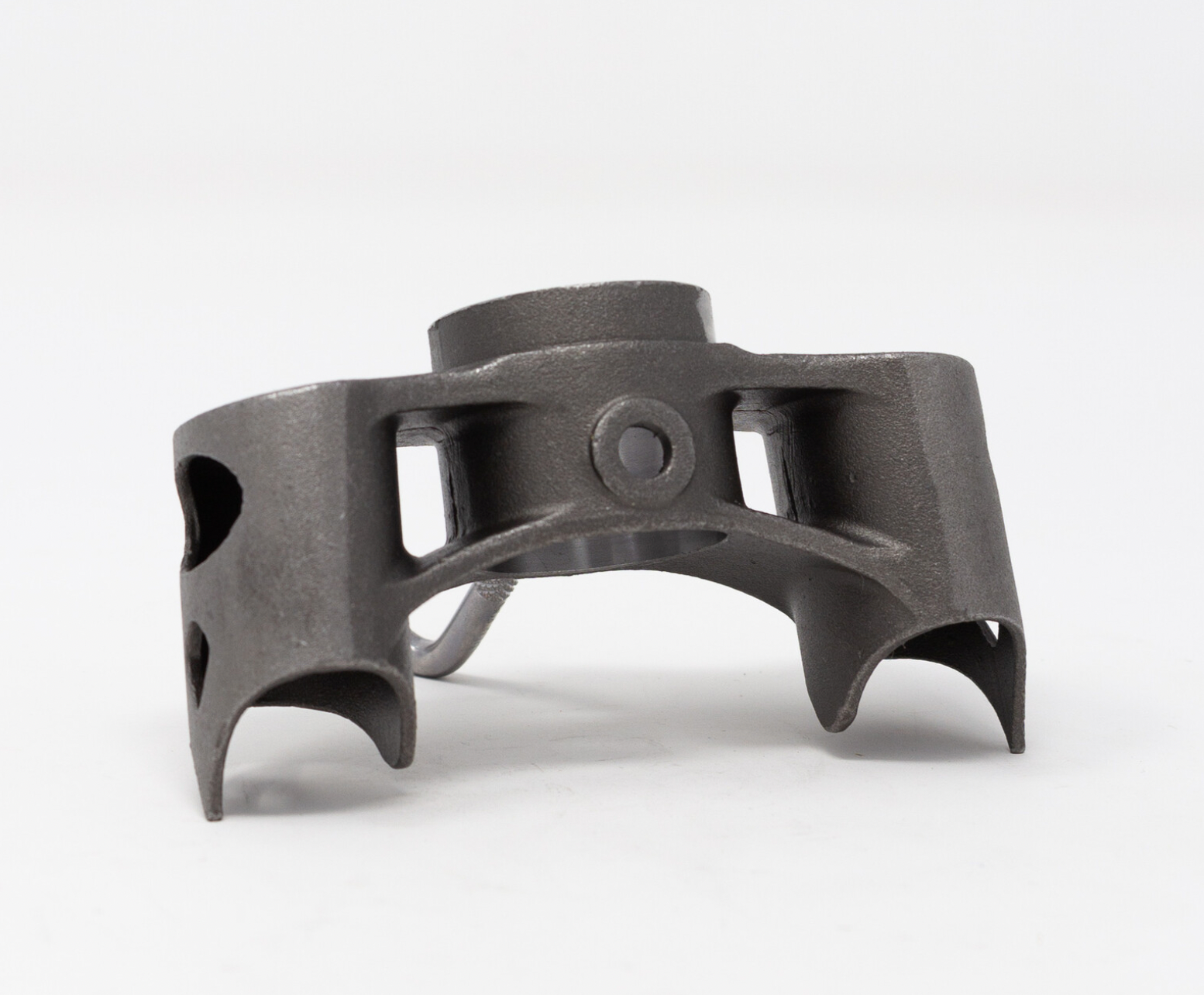

A selection of fork crowns for frame builders. Manufactured in Taiwan by Allotec, a foundry which makes steel frame parts using the lost wax investment casting method. Please see diagram and details spec in the manufacturer's catalog.
C: Steerer diametre, AxB: Fork blade profile, W: inside width, X: Fork blade angle, W.T: weight
A04-1
C:25.4mm
AxB:28X19.3mm
W:39mm
X°:4°
W.T:130g
A04-2
C:28.6mm
AxB:28X19.3mm
W:39mm
X°:4°
W.T:130g
A13-2
C:28.6mm
AxB:30X20mm
W:70mm
W.T:205g
A14-2
C:28.6mm
AxB:28X20mm
W:50mm
W.T:131g
A22-1
C:25.4mm
AxB:28x20mm
W:61mm
X°:2.56°
W.T:185g
A22-2
C:28.6mm
AxB:28x20mm
W:61mm
X°:2.56°
W.T:162g
A24-1
C:25.4mm
AxB:28x20mm
W:61mm
X°:2.56° Y°:7°
W.T:185g
A24-2
C:28.6mm
AxB:28x20mm
W:61mm
X°:2.56° Y°:7°
W.T:162g
