Rachel Frameset

DETAIL

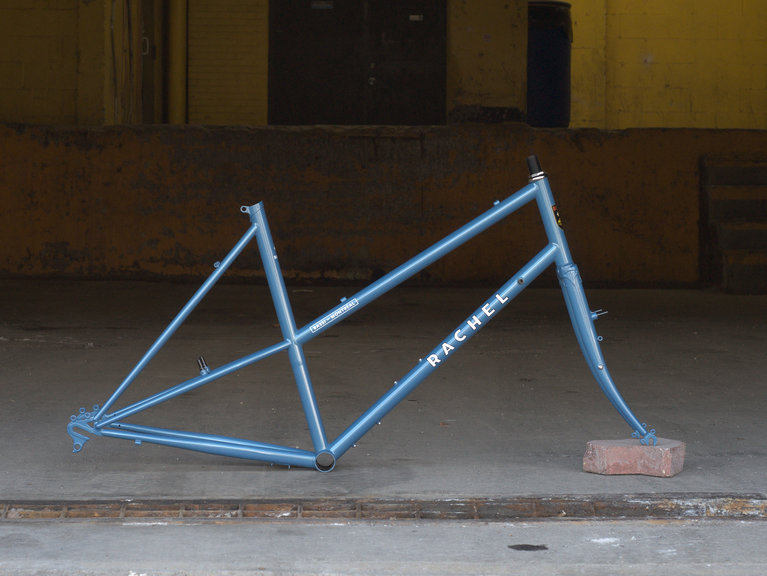

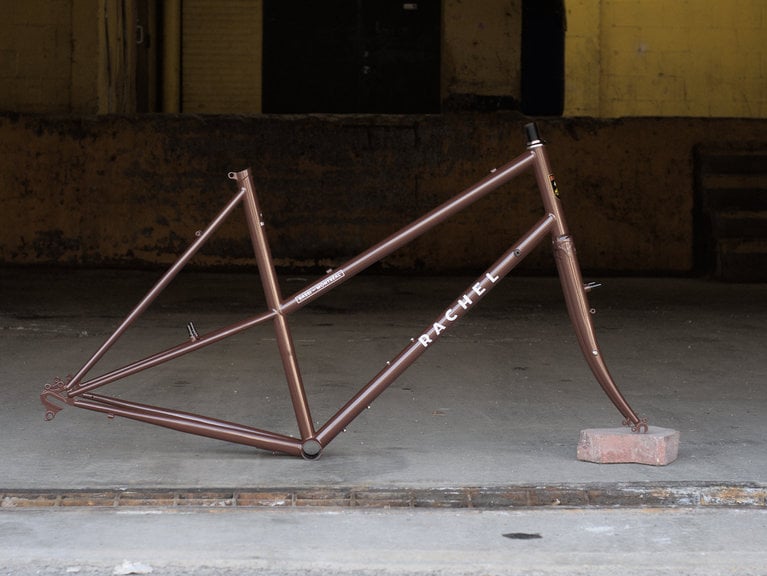

Our beautiful Rachel step-through frame is getting revamped! This new version is just as useful for every kind of riding as the previous one, but we made a few modifications to make it a little more stable and comfortable. Longer chainstays, eyelets for two bottle cage and all kinds of racks, V-Brakes instead of road brakes, and more. Basically, we made the Rachel into an even more capable go-everywhere country bike.

The two smaller sizes are still designed around 26" wheels, while the two larger sizes use 700c wheels. The tire clearance now officially a few millimeters larger, to make it even easier for everyone to enjoy backcountry riding. Available in two magnificent new colours, Beaujolais and Asphalt.

• Tube Type: 4130 CrMo steel (double butted top and down tubes/triple butted seat tube)
• Bottom Bracket: 68mm wide, British Threaded
• Seat Tube inner diameter: 27.2mm
• Diagonal drop-outs
• M5 eyelets on seat stays and drop-outs for rack and fenders

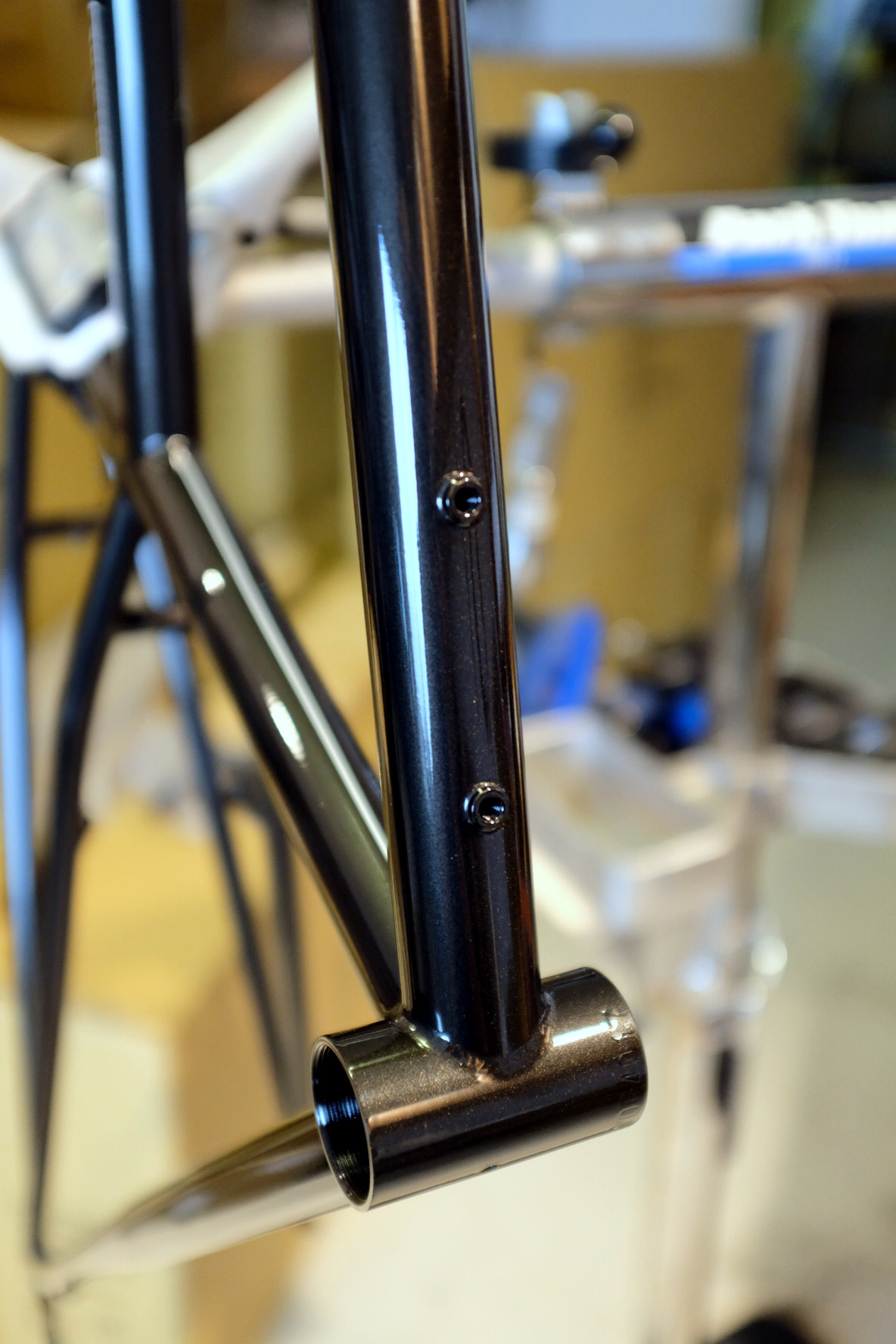

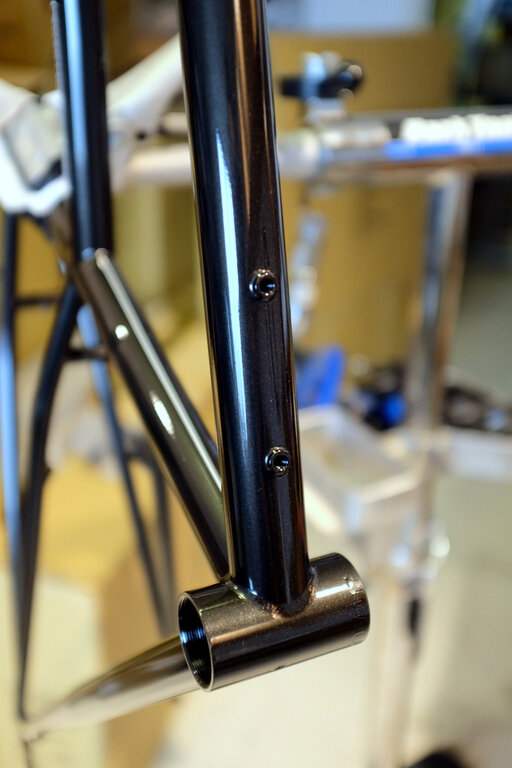

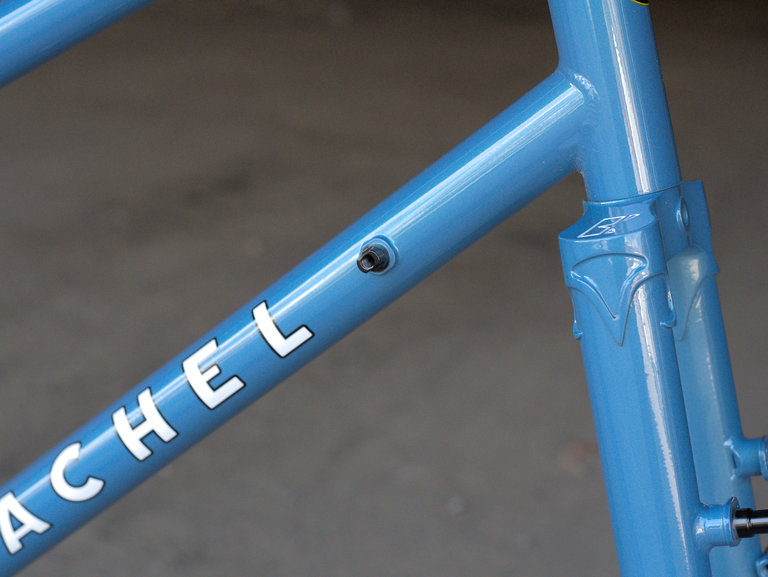

• 5M eyelets on down tube for 2 bottle cages
• 5M eyelets on fork for fenders, mini platform rack and lowrider rack

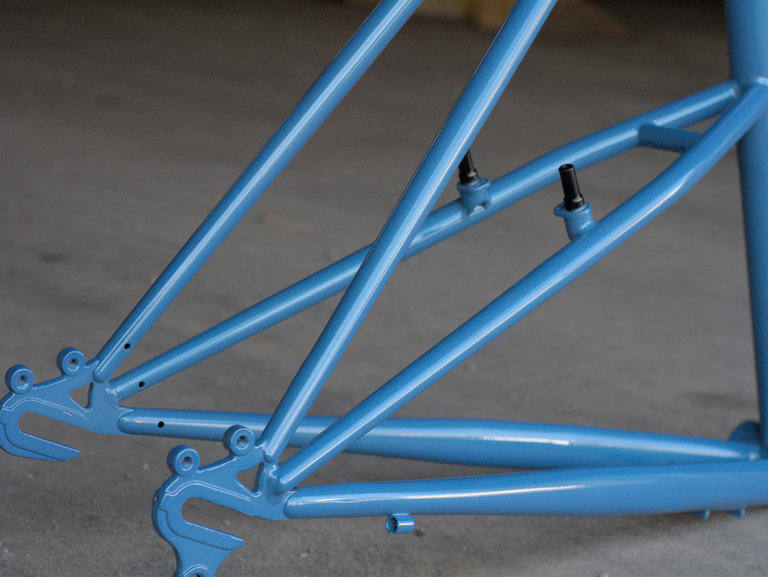

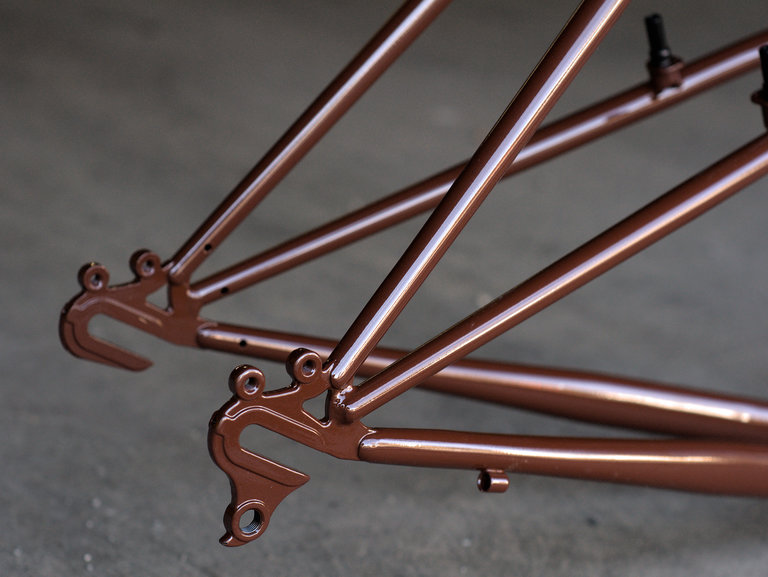

• Forged diagonal rear drop-out, 132.5mm spacing to fit most current hubs.

Supplied with:

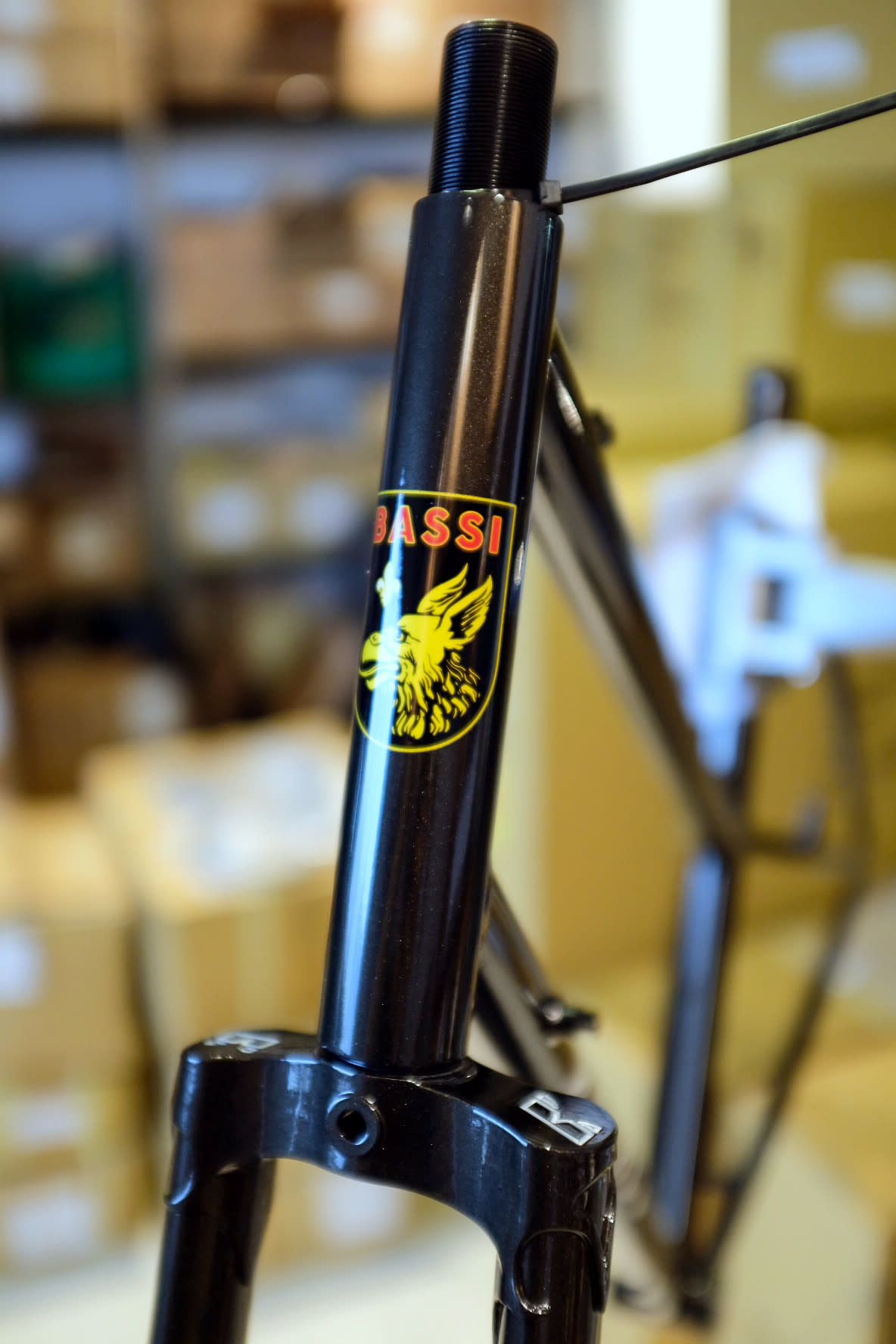

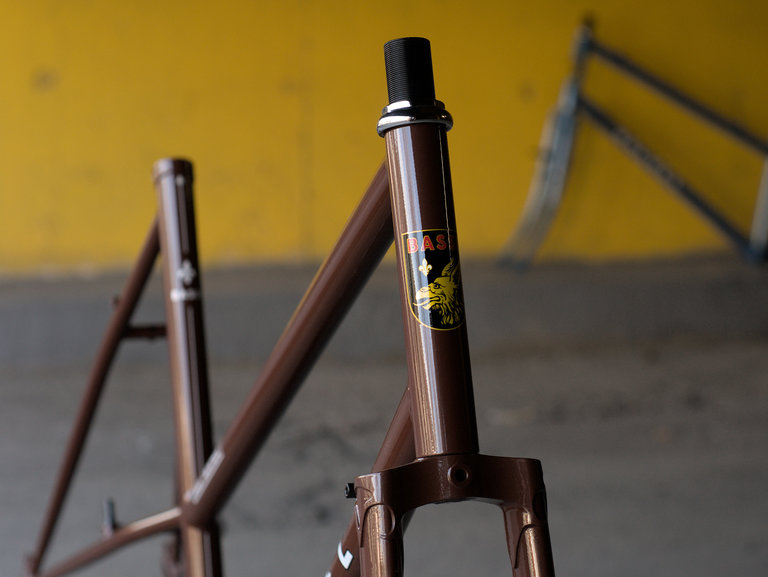

• 1" threaded bent lugged fork with 26.4mm ø fork crown
• Bottom Bracket shift cable guide
• Rear hub positioning screws
• Seat post bolt

GEOMETRY

* all measurements are in millimeters except for angle measurements which are in degrees.

Colours are not necessarily representative when viewed on a screen. Please be prepared to accept slight differences in hue from the colours you see here.
