Steel singlespeed all-around frame, designed in Montreal


While the V1 Bloomfield was intended as a continuation of our original track frame, the Roma-Tokyo, the V2 is where the page is fully turned. This new Bloomer plants itself, if you will, as it’s own thing, dropping some of the track bike aesthetics and wheel standard in favour of more practical choices.

It being our lightest and most compact offering, the Bloomfield is perfect for tight urban spaces. The fender mounts and generous tire clearance make it an amazing winter commuter, and it can rando too!

We kept the same zippy-yet-comfy geometry of the V1 but added a few things.

Here’s what’s new:

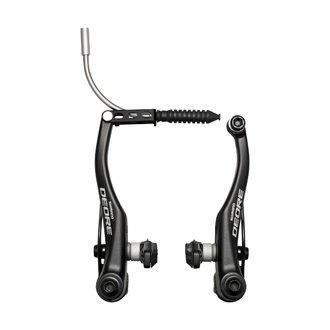

  • V-brake / Canti brake bosses, compatible with 650B wheels only
  • Rear brake cable housing stops
  • Threaded plate at the bottom of the fork column for front fender installation

Here's what stayed the same:

  • Straight fork and agile geometry
  • Forged horizontal rear dropouts in 120mm spacing
  • 650Bx48 tire clearance (650Bx42 w/ fenders)
  • Hidden eyelets for fenders, fork eyelets for randonneur racks
  • Bottle cage eyelets
  • 1" threaded fork for use with threaded headsets and quill stems


  • Tube Type: 4130 CrMo steel (double butted top and down tubes and triple butted seat tube)
  • Two smaller sizes use 25.4mm & 16.0mm top-tube & seat-stay for reduced weight
  • Two larger sizes use 28.6mm & 19.0mm top-tube & seat-stay for added stiffness
  • Fork: 1" threaded for EC30 threaded headsets and quill stems, 26.4mm crown race seat
  • Bottom Bracket: 68mm wide, BSC threaded
  • Seat Tube inner diameter: 27.2mm
  • M5 eyelets at mid-fork (for rando rack), on seat stays and drop-outs for fenders
  • Two bottle cage mounts
  • Eyelets on seat tube and top tube for shoulder strap
  • Forged horizontal rear dropouts with 120mm spacing, a standard in singlespeed frames
  • Includes track dropout screws and seatpost bolt


SIZE 47.5cm 50.5cm 53.5cm 56.5cm
Seat tube (c-t) 475 505 535 565
Effective top tube 530 550 570 590
Head tube angle 72 72.5 72.5 72.5
Seat tube angle 74 74 73 73
Chainstay 410 410 410 410
BB drop 50 50 50 50
Stack 482 510 538 567
Reach 391 403 405 416
Wheelbase 986 1003 1013 1033
Rake 45 45 45 45
Tire clearance 650Bx45 650Bx45 650Bx45 650Bx45

* all measurements are in millimeters except for angle measurements which are in degrees

Colours are not necessarily representative when viewed on a screen. Please be prepared to accept slight differences in hue from the colours you see here.

Please note that the lowest set of eyelets on the fork and on the seatstays are for fenders only. They are not meant to bear the load of a rack.
