Villeneuve Frameset

C$620.00
3 In stock
Article code MAX BAS-VIL-YS728BLK-50
Steel city and gravel frame inspired by classic road-tourer bikes, designed in Montreal
Add to cart

The Villeneuve frame is typically suited for building a commuter, gravel road bike, randonneur, or a light touring bicycle. We kept the same stable geometry as the Montreal but we shortened the top tube for those with short torsos and long legs. Both shorter sizes (46.2cm and 49.2cm) were designed around a 650C wheel size in order to correspond better to larger bicycle proportions. If you're a particularly leggy shorter rider, you might prefer the 50cm size, which uses the larger 700C wheels. The Villeneuve is designed for long reach side pull calipers for ease of adjustment and wide tire clearance. The frame is available in white or black.

  • Tube Type: 4130 CrMo steelo (double butted top and down tubes/triple butted seat tube)
  • Bottom Bracket: 68mm wide, British Threaded
  • Seat Tube inner diameter: 27.2mm
  • Diagonal drop-outs
  • M5 eyelets on seat stays and drop-outs for rack and fenders
  • M5 eyelets on seat tube and down tube for bottle cages
  • M5 eyelets on seat tube and top tube for shoulder strap
  • Chain hanger inside right seat stay

Supplied with:

  • 1" threaded bent lugged fork with 26.4mm ø fork crown
  • Bottom Bracket shift cable guide
  • Rear hub positioning screws
  • Seat post bolt

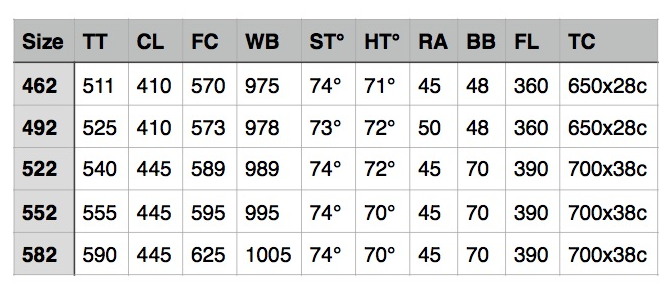

GEOMETRY

Legend:

  • Size: Seat tube center to center
  • ST: Seat tube center to top
  • TT: Top Tube length Horizontal
  • CL: Chainstay Length
  • FC: Front to Center
  • WB: Wheelbase Length
  • ST˚: Angle of Seat Tube and Top Tube
  • SH˚: Angle of Seat Tube and Horizon
  • HT˚: Angle of Head Tube and Horizon
  • RA: Fork Rake
  • BB: Bottom Bracket drop
  • FL: Fork Length axle to crown
  • TC: Maximum Tire Size Clearance

(dimensions in millimeters)
