Rachel frameset

C$650.00
8 In stock
Article code BAS-RAC-YEL-55-700
Steel city and gravel touring step-through frame inspired by classic English sport bikes, designed in Montreal
Add to cart

The Rachel frame is the counterpart to the Villeneuve - equally versatile but with the added comfort of a step-through design. Whether built as a comfortable cruiser or as a rugged dirt-road tourer, the Rachel excels fashionably. In keeping with a proportional frame design, the two smaller sizes are built around a 26" wheel size, while the two larger use the 700C size. Long reach calipers provide loads of clearance for chubby tires and fenders. The Rachel is available in Ballpark Yellow or Blue Whale Blue.

  • Tube Type: 4130 CrMo steel (double butted top and down tubes/triple butted seat tube)
  • Bottom Bracket: 68mm wide, British Threaded
  • Seat Tube inner diameter: 27.2mm
  • Diagonal drop-outs
  • M5 eyelets on seat stays and drop-outs for rack and fenders
  • 5M eyelets on down tube for bottle cage
  • 5M eyelets on fork for fenders, mini platform rack and lowrider rack

Supplied with:

  • 1" threaded bent lugged fork with 26.4mm ø fork crown
  • Bottom Bracket shift cable guide
  • Rear hub positioning screws
  • Seat post bolt

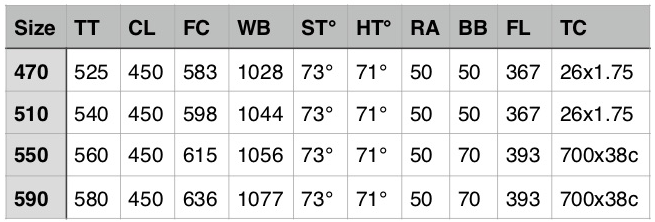

GEOMETRY

Legend:

  • Size: Seat tube center to center
  • ST: Seat tube center to top
  • TT: Top Tube length Horizontal
  • CL: Chainstay Length
  • FC: Front to Center
  • WB: Wheelbase Length
  • ST˚: Angle of Seat Tube and Top Tube
  • SH˚: Angle of Seat Tube and Horizon
  • HT˚: Angle of Head Tube and Horizon
  • RA: Fork Rake
  • BB: Bottom Bracket drop
  • FL: Fork Length axle to crown
  • TC: Maximum Tire Size Clearance

(dimensions in millimeters)
