Bassi Montréal Frameset

C$600.00
Article number: MAX BAS2-MTL-BLK-52.5
Availability: In stock (5)

Le Montréal, our most popular frameset, is also our most versatile. Whether built up as a commuter, porteur, randonneur, touring, or cyclocross cycle, its 4130 Chromoly frame balances style and function. Inspired by classic 1980s touring bikes, Le Montréal features eyelets for front and rear fenders and racks, two bottle cages, and our signature shoulder strap. The 49.5cm size is designed around 650c wheels, resulting in a more proportional bike for shorter riders. If you're a particularly leggy shorter rider, you might prefer the 50cm size, which uses the larger 700C wheels.

  • Tube Type: 4130 CrMo steel (double butted top and down tubes and triple butted seat tube)
  • Bottom Bracket: 68mm wide, British Threaded
  • Seat Tube inner diameter: 27.2mm
  • M5 eyelets at mid-fork*, on seat stays and drop-outs for rack and fenders
  • M5 eyelets on seat tube and down tube for bottle cages
  • M5 eyelets on seat tube and top tube for shoulder strap
  • Cantilever brake bosses on fork and seat stays
  • Chain hanger inside right seat stay
  • Forged vertical rear drop-out

Supplied with:

  • 1" threaded bent lugged fork with 26.4mm ø fork crown
  • Bottom Bracket shift cable guide



*49.5cm size does not have mid-fork eyelets

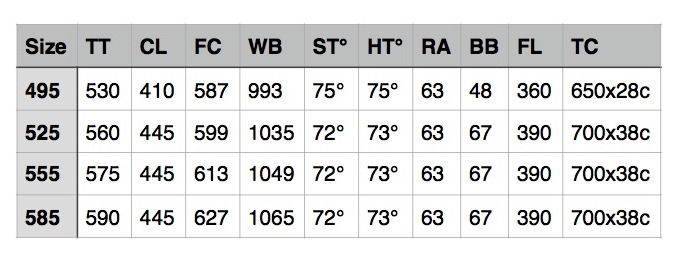

GEOMETRY

Legend:

  • Size: Seat tube center to center
  • ST: Seat tube center to top
  • TT: Top Tube length Horizontal
  • CL: Chainstay Length
  • FC: Front to Center
  • WB: Wheelbase Length
  • ST˚: Angle of Seat Tube and Top Tube
  • SH˚: Angle of Seat Tube and Horizon
  • HT˚: Angle of Head Tube and Horizon
  • RA: Fork Rake
  • BB: Bottom Bracket drop
  • FL: Fork Length axle to crown
  • TC: Maximum Tire Size Clearance

(dimensions in millimeters)
