Bassi Casterino Frameset

C$510.00
Article number: MAX BAS-CAS-YS9202RED-52.5
Availability: In stock (14)

The Casterino, inspired by the racing bike geometries of the late 1980s in the European pro cycling circuit, is a modern interpretation of the classic road bike. Welded from 4130 Cromoly tubing with an aggressive geometry, the Casterino is the ideal bicycle for training and long fast pavement outings. No compromise is necessary between ride comfort and performance. The Casterino can bring you anywhere, quickly, and without the uncomfortable vibrations felt on a rigid aluminium frame. The frame is equipped with braze-ons accommodating a bottle cage and our signature Bassi leather shoulder strap, making carrying the bicycle much easier.

  • Tube Type: 4130 CrMo steel (double butted top and down tubes/triple butted seat tube)
  • Bottom Bracket: 68mm wide, British Threaded
  • Seat Tube inner diameter: 27.2mm
  • Front entry rear drop-outs with hub axle positioning screws
  • M5 eyelets on seat tube and top tube for shoulder strap
  • M5 eyelets on down tube for bottle cage
  • Chain pin inside right seat stay

Supplied with:

  • 1’’ threaded bent lugged fork with 26.4mmø fork crown
  • Bottom bracket shift cable guide
  • Rear hub positioning screws
  • Seat post bolt

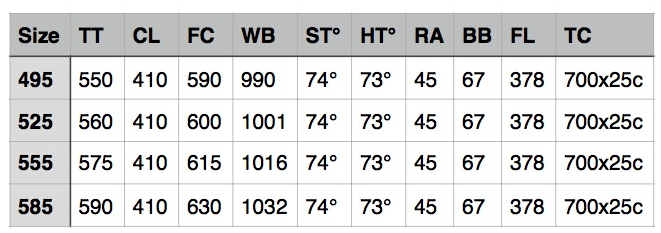

GEOMETRY

Legend:

  • Size: Seat tube center to center
  • ST: Seat tube center to top
  • TT: Top Tube length Horizontal
  • CL: Chainstay Length
  • FC: Front to Center
  • WB: Wheelbase Length
  • ST˚: Angle of Seat Tube and Top Tube
  • SH˚: Angle of Seat Tube and Horizon
  • HT˚: Angle of Head Tube and Horizon
  • RA: Fork Rake
  • BB: Bottom Bracket drop
  • FL: Fork Length axle to crown
  • TC: Maximum Tire Size Clearance

(dimensions in millimeters)
